Electric Tug Modena

The TRP4 is a compact Stand-On Tractor, designed to tow trailers up to 4000 kg and particularly suitable for working in confined spaces.

The small turning radius of the steering and a progressive automatic speed reduction when turning ensures maximum maneuverability and stability at any speed.
The ergonomics of the driving position provides the operator with exceptional comfort and control, even during long shifts.
The operator compartment is spacious and the steering “Joystick”, controls the power steering groups, and all the major controls are operable with both hands.
The mat platform is anti-slip and for all its amplitude, acts as a “micro presence of man” and any operator, by adjusting the backrest,
will find their ideal driving position.
The optional rear external “Inching” buttons control forward, backward and slow movement and facilitates the operations of coupling and uncoupling of trailers.
The optional remote semi- automatic device, allows the operator to engage / disengage the trailer without leaving the platform.
Unique in its kind, this machine allows the extraction of of the battery both laterally as well as vertically .

• FRAME: welded sheet steel forms a supporting structure that holds it structurally rigid and extremely resistant to flex.
• STEERING AND TRACTION GROUP: The traction unit and the electric steering are grouped in a unique structure, both with high power and AC technology that ensures optimum performance and great safety. The Traction motor is mounted on the electric brake which works as a parking brake.
• ELECTRICAL SYSTEM: The AC inverter controls the performance of the traction engine and another inverter, that of AC also monitors the performance of the steering engine coupled to a clutch device. Both systems are programmable from the console in order to obtain optimal performance of the work to be done.
• BRAKES: The brake arrives while releasing the selector’s throttle of the steering wheel as well while reversing the direction.
• Another brake system, the electromagnetic proportional, is mounted on the rear wheels. In case of necessity, such system stops the vehicle in a very confined space.
• EQUIPMENT: Full automotive type includes a switch Hare / Tortoise (Optional), horn, light switch and a Meter for the state of the battery charge, the hours worked and Possible faults.
• POWER: One battery 24V 480Ah (C5) ensures a great autonomy, given the considerable capacity, it is not normally stressed with a consequent excellent durability of time.

Electric Tug

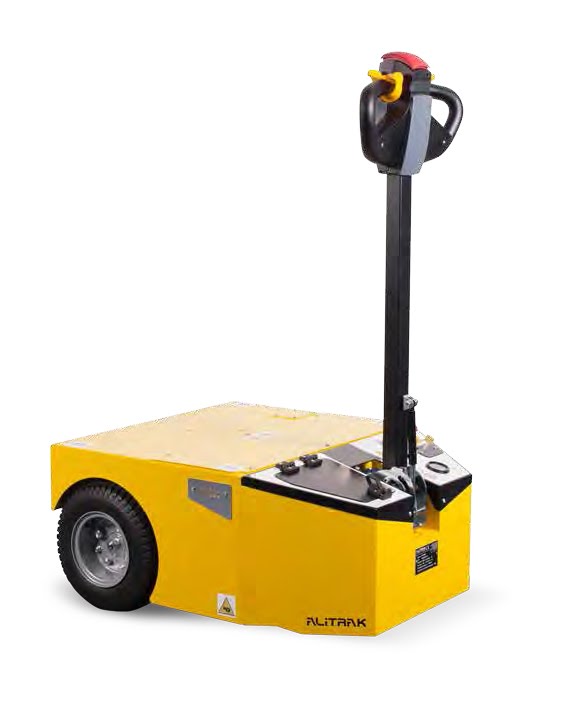

Electric Tug-Trak1000 Alitrak

• The TT‐1000 is a four wheeled ZERO emission electric drive pedestrian Tug ergonomically designed to easily move heavy duty machine, Industrial and commercial goods with safety and ease.
• The Tug Trak reduces the manual effort required to perform repetitive tasks thereby improving productivity and reducing the chance of work related injuries.
• The TT‐1000 has a pulling and pushing capacity of 14000kgs and a loading capacity of 200kgs.
• The Large diameter Driving and Steer wheels ensure maximum traction even on rough surfaces.
• Adjustable Handle Height.
• Emergency Stop Button.
• Slow speed switch to operate in narrow spaces
• 4 Hooks to pull at different heights
• On-Board battery charger
• Tilting tiller with micro safety switch and automatic return to rest position
• For slippery surfaces, optional ballast can be added easily.
• Electromagnetic brake with the possibility of release
• .

Electric Tug T Trak 1000

Electric Tug

For more information and pricing on electric Tug and details click here:

Electric Tug

Electric Tug Trak900 Plus

Electric Tug

Tug Trak900 Plus

• Ultra terrain tug, particularly suited to off-road use.
• The TT-Plus is a pedestrian operated electric tug specifically designed for moving trailers.
• The TT-Plus couples to the trailers on the rear hitch through an electric lift with a 15cm range eliminating the need to lift the trailer onto the ball mount.
• This greatly reduces the risk of injury to the back or the hands of the operator.
• The power of the TT-Plus allows for a loaded capacity of 300kgs and a pulling capacity of up to 3000kgs..
• Gradients of 20% are handled without difficulty.
• Electromagnetic with the possibility of release
• 2x75Ah AGM gel batteries provides up to 8 hours of operation on a single charge.
• On-Board battery charger
• The TT-Plus is equipped with a swivel tiller head that can rotate 80° for maneuverability and has a forward and reverse speed up to 5kmh.
• The TT-Plus has an electromagnetic brake that blocks the movement when not in operation, preventing slippage while on an inclined ramp.

Electric Tug

Electric Tug

Indoor Electric Tug 900

• BATTERY-POWERED INDOOR ELECTRIC TUG.
• The IT‐900 is a three wheeled ZERO emission electric drive pedestrian tug ergonomically designed to easily move loads on wheels in safety and comfort.
• The Tug reduces the manual effort required to perform repetitive tasks thereby improving productivity and reducing the chance of work related injuries.
• The TT‐900 has a towing capacity of 3000 kgs and a loading capacity of 300kgs.
• With 2 x 85 AH AGM batteries, it has an autonomy of up to  8 hours of continuous operation.
• Tiller steering allows easy operation and control with great manoeuvrability.
• Folding handle to reduce transport size and costs.
• Adjustable height handle to suit all operators
• For slippery surfaces, ballast can be added easily.
• Electromagnetic brake with brake release switch
• On-board charger with light indication of charge status.
• Butterfly throttle speed control with slow & fast switch.
• Options: solid, non‐marking tires and Flashing Safety Light.

Electric Tug

Download the PDF Datasheet Specification:

PDF Electric Tug 900
